FLAIR Pump Guide

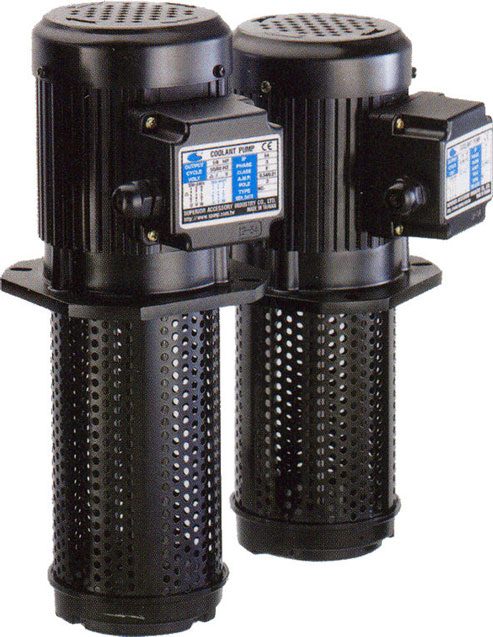

The SP-series of cooling supply pumps offer the newest innovations in immersion pump technology. Patent protected features make our pumps more quite, cooler operating, and longer lasting. Innovations such as our pre-filter screen, heat dissipation blades, stainless steel coolant tube, and slot type mounting holes.
Wiring meets international standard, IP-45, and are both water and dust proof. Multi-voltages and frequencies built into one pump resists high instant voltage fluctuations and simplifies inventory. Certified: ISO-9001 and European CE
Wiring meets international standard, IP-45, and are both water and dust proof. Multi-voltages and frequencies built into one pump resists high instant voltage fluctuations and simplifies inventory. Certified: ISO-9001 and European CE
| Model | HP | Immersion Depth | Outlet | LPM Three Phase |
| SP-8100 | 1/8-hp | 100mm | 3/8" or 1/2" PT | 48-lpm |
| SP-8130 | 1/8-hp | 130mm | 3/8" or 1/2" PT | 48-lpm |
| SP-8150 | 1/8-hp | 150mm | 3/8" or 1/2" PT | 48-lpm |
| SP-8180 | 1/8-hp | 180mm | 3/8" or 1/2" PT | 48-lpm |
| SP-8200 | 1/8-hp | 200mm | 3/8" or 1/2" PT | 48-lpm |
| SP-8220 | 1/8-hp | 220mm | 3/8" or 1/2" PT | 48-lpm |
| SP-6100 | 1/6-hp | 100mm | 3/8" or 1/2" PT | 52-lpm |
| SP-6130 | 1/6-hp | 130mm | 3/8" or 1/2" PT | 52-lpm |
| SP-6150 | 1/6-hp | 150mm | 3/8" or 1/2" PT | 52-lpm |
| SP-6180 | 1/6-hp | 180mm | 3/8" or 1/2" PT | 52-lpm |
| SP-6200 | 1/6-hp | 200mm | 3/8" or 1/2" PT | 52-lpm |
| SP-6220 | 1/6-hp | 220mm | 3/8" or 1/2" PT | 52-lpm |
| SP-6270 | 1/6-hp | 270mm | 3/8" or 1/2" PT | 52-lpm |
| SP-4155 | 1/4-hp | 155mm | 1/2" or 3/4" PT | 90-lpm |
| SP-4180 | 1/4-hp | 180mm | 1/2" or 3/4" PT | 90-lpm |
| SP-4200 | 1/4-hp | 200mm | 1/2" or 3/4" PT | 90-lpm |
| SP-4220 | 1/4-hp | 220mm | 1/2" or 3/4" PT | 90-lpm |
| SP-4270 | 1/4-hp | 270mm | 1/2" or 3/4" PT | 90-lpm |
| SP-4350 | 1/4-hp | 350mm | 1/2" or 3/4" PT | 90-lpm |
| SP-3155 | 1/3-hp | 155mm | 3/4" PT | 95-lpm |
| SP-3180 | 1/3-hp | 180mm | 3/4" PT | 95-lpm |
| SP-3200 | 1/3-hp | 200mm | 3/4" PT | 95-lpm |
| SP-3220 | 1/3-hp | 220mm | 3/4" PT | 95-lpm |
| SP-3240 | 1/3-hp | 240mm | 3/4" PT | 95-lpm |
| SP-3270 | 1/3-hp | 270mm | 3/4" PT | 95-lpm |
| SP-3350 | 1/3-hp | 350mm | 3/4" PT | 95-lpm |
| SP-2150 | 1/2-hp | 150mm | 3/4" or 1" PT | 165-lpm |
| SP-2180 | 1/2-hp | 180mm | 3/4" or 1" PT | 165-lpm |
| SP-2240 | 1/2-hp | 240mm | 3/4" or 1" PT | 165-lpm |
| SP-2290 | 1/2-hp | 290mm | 3/4" or 1" PT | 165-lpm |
| SP-2340 | 1/2-hp | 340mm | 3/4" or 1" PT | 165-lpm |
| SP-A150 | 3/4-hp | 150mm | 1" PT | 180-lpm |
| SP-A180 | 3/4-hp | 180mm | 1" PT | 180-lpm |
| SP-A290 | 3/4-hp | 290mm | 1" PT | 180-lpm |
| SP-A340 | 3/4-hp | 340mm | 1" PT | 180-lpm |
| SP-1180 | 1-hp | 180mm | 1-1/4" PT | 250-lpm |
| SP-1240 | 1-hp | 240mm | 1-1/4" PT | 250-lpm |
| SP-1290 | 1-hp | 290mm | 1-1/4" PT | 250-lpm |
| SP-1380 | 1-hp | 380mm | 1-1/4" PT | 250-lpm |
| SP-Y180 | 1.5-hp | 180mm | 1-1/4" PT | 285-lpm |
| SP-Y240 | 1.5-hp | 240mm | 1-1/4" PT | 285-lpm |
| SP-Y290 | 1.5-hp | 290mm | 1-1/4" PT | 285-lpm |
| SP-Y380 | 1.5-hp | 380mm | 1-1/4" PT | 285-lpm |
Specifications subject to change. Please contact us for more information.
