Gockel Grinding Supplies
Overview

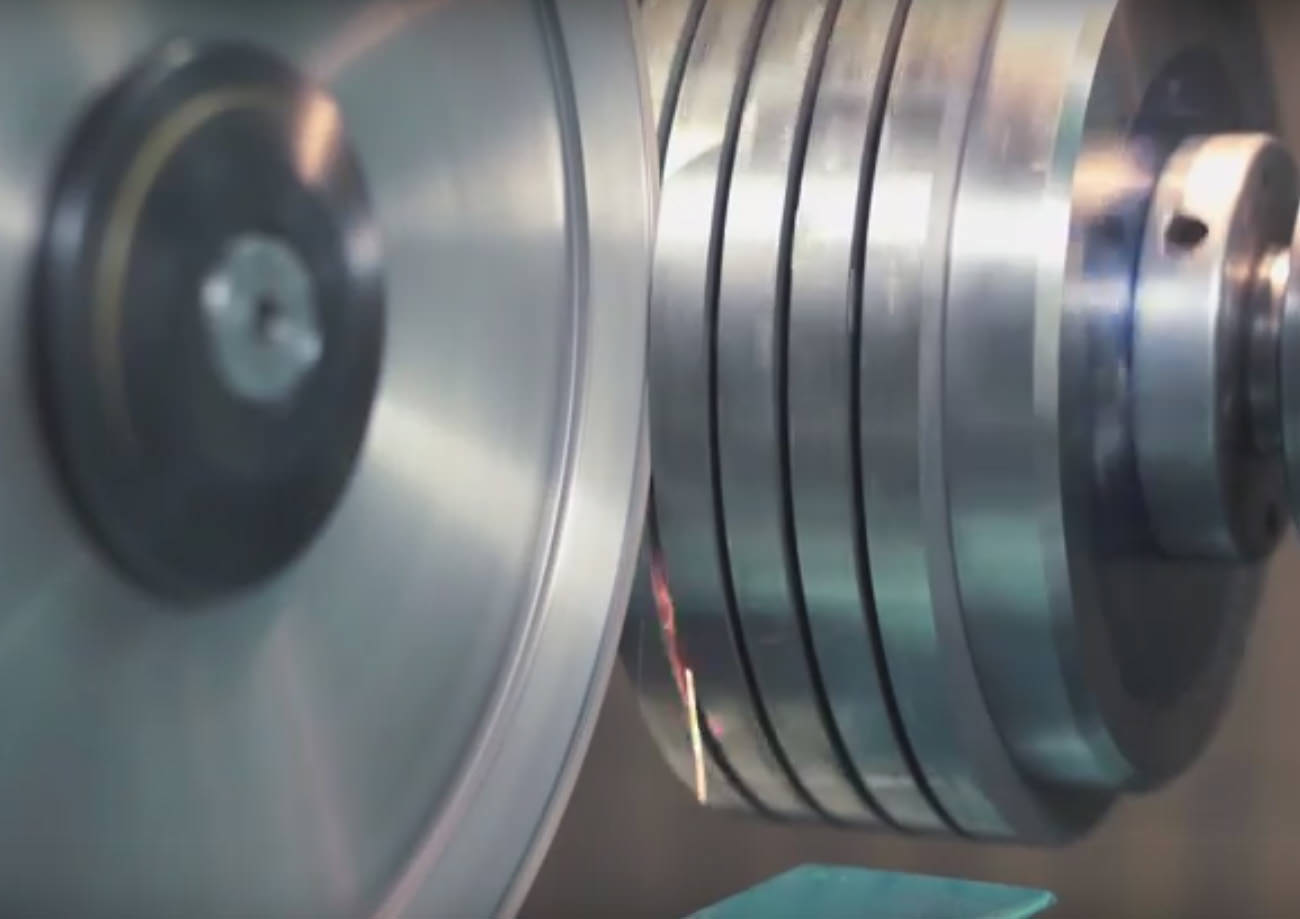

Precision circular knife grinding machines. Easy to operate and programmable for precise sharpening applications with reproducible results. All circular knife types from small scoring knives to large multi band slitters.
| Model | R2 | RB3 | RB5 |
| Operation Type | Manual Hand Feed | Automatic | Automatic |
| Workpiece Diameter | 300mm | 300mm | 450mm |
| Workpiece Power | 0.3/0.4kW | 0.4kW | 1.2 or 2.2kW |
| Workpiece Speed | 60/120-rpm | 300-rpm (variable) | 300-rpm (variable) |
| Workpiece Rotation | 360-degrees | 360-degrees | 360-degrees |
| Workpiece Stroke | 200/250mm | 400mm | 500mm |
| Grinding Motor | 1.5kW | 1.5kW | 4 or 7.5kW |
| Grinding Speed | 1450/2900-rpm | Max. 3500-rpm | Max. 6000-rpm |
| Grinding Wheel | 150/200mm | 200mm | 200mm |
| Spindle Adj. | N/A | 75mm | 5 / 3.5-degrees |
| Coolant Pump | 45-lpm | 45-lpm | 35-lpm |
Specifications subject to change. Please contact us for more information.
