Overview

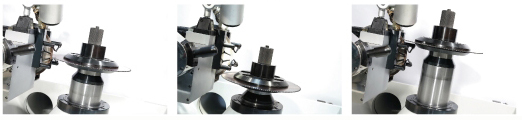

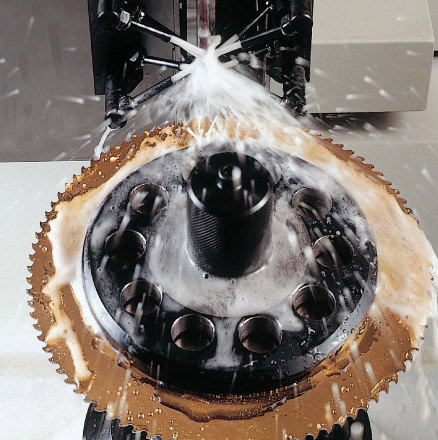

The EMA-500 HSS saw grinder is the latest innovation in precision 4 or 3-axis CNC sawblade sharpening systems from Eyan America. A ridged design with heavy steel construction, cast supports and precision linear way system.
The new easy to use program comes standard with 6 tooth forms and easy setup for different chamfering types (Chamfering only with 4-axis model).
The new easy to use program comes standard with 6 tooth forms and easy setup for different chamfering types (Chamfering only with 4-axis model).
| Model | EMA-500 3A | EMA-500 4A |
| Grinding Range | 95 ~ 500mm | 95 ~ 500mm |
| Optional Grinding Range | (45 ~ 120mm) | (45 ~ 120mm) |
| Chamfer Range | N/A | 165 ~ 500mm |
| Number of Teeth | 10 ~ 998 | 10 ~ 998 |
| Saw Blade Thickness | Max. 8mm | Max. 8mm |
| Grinding Speed | 1 ~ 60 teeth /min | 1 ~ 60 teeth /min |
| Cutting Angle | 0 ~ 30 degrees | 0 ~ 30 degrees |
| High / Low | Standard | Standard |
| X-axis Motor | Servo | Servo |
| Z-axis Motor | Servo | Servo |
| B-axis Motor | Servo | Servo |
| Y-axis Motor | N/A | Servo |
| Grinding Wheel | 200 x 32mm | 200 x 32mm |
| Grinding Motor | 4.0kw (5hp) | 4.0kw (5hp) |
| Grinding Wheel Speed | 2500 ~ 6000mm | 2500 ~ 6000mm |
| Magnetic Filter | 25w | 25w |
| Oil Mist Collector | 0.55 kw | 0.55 kw |
| Coolant Pump | 2.4kw | 2.4kw |
| Gross Weight | 1264-kg | 1342-kg |
Specifications subject to change. Please contact us for more information.
